Overhead Self Supporting Single Mode Outdoor Fiber Optical Cable GYTC8S Figure 8 Fiber Cable
Description
UT-King’s GYTC8S is a typical outdoor fiber optical cable used for aerial environment. It’s also called the figure 8 cable because its structure looks like the figure ‘8’. Due to equipped with self-supporting wire, there’s no need of other hanging wire to support it during the deployment.

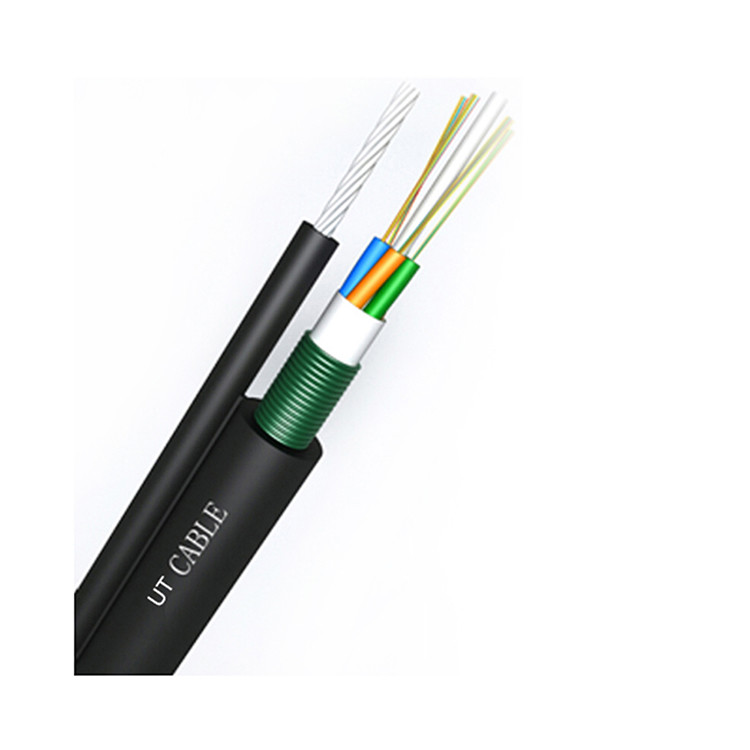

Figure 8 self-supporting cable GYTC8S, 2~144 fibers, central strength member (steel), jelly filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking jelly, longitudinally covered by copolymer coated steel tape, PE outer sheath, fig 8 type, the suspension line (1.2x3=3.6mm), 7 steel wires stranded together. G652D SM fiber, detailed specification on your request.
Features
- Excellent mechanical and temperature performance
- Special tube filling oil ensures water-proof performance
- Loose tube stranding cable core ensures the cable structure stable
- Optional aluminum or corrugated steel sheathing
Specification
| Cable type | OD(mm) | Nominal Weight(kg/km) | Tensile Strength(N) | Crush Resistance(N/100MM) | Bending Radius(mm) |
| Short term | Long-term | Short term | Long-term | Dynamic | Static |
| GYTC8S-12~60Xn | (11.0±0.1)*(20.8±0.5) | 212 | 4950 | 2500 | 2000 | 1000 | 20D | 15D |
| GYTC8S-62~72Xn | (11.0±0.1)*(20.8±0.5 | 248 | 4950 | 2500 | 2000 | 1000 | 20D | 15D |
| GYTC8S-74~96Xn | (11.0±0.1)*(20.8±0.5 | 258 | 4950 | 2500 | 2000 | 1000 | 20D | 15D |
| GYTC8S-98~120Xn | (11.0±0.1)*(20.8±0.5 | 332 | 4950 | 2500 | 2000 | 1000 | 20D | 15D |
| GYTC8S-122~144Xn | (11.0±0.1)*(20.8±0.5 | 397 | 4950 | 2500 | 2000 | 1000 | 20D | 15D |
| Storage/Working temperature(℃) -40-+70 |
Detailed Images
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a professional cable manufacturer with 30 years of production experience
Q: What are our payment terms?
A: Our payment terms are usually T / T 30% of the prepayment, ie the balance before pickup or the sight letter of credit.
Q. What is the delivery time?
A: The delivery time is usually 5-30 days. If the order quantity is large, the delivery time needs to be negotiated again.
Q: Can we provide customers with free samples?
Of course, we provide free samples for customers to check.
Q: Does your price include customs clearance at the destination, import tax, installation services?
A: Sorry, we currently only provide cables and provide transportation services in China. Both parties should re-quote and negotiate other services.
Q: What is your quality guarantee and deadline?
A: Each product will be inspected by professional testing equipment, and the product will be out of the warehouse after it is qualified. Usually, the warranty period is 18 months after delivery and 12 months after installation (whichever is earlier).
