Huawei EG8145V5 Dual frequency WI-FI gpon ont 4ge+1tel+2.4G 5G WIFI 5db
Description
The EchoLife EG8145V5 is a intelligent routing-type Optical Network Terminal (ONT) in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home users. The EG8145V5 supports 802.11ac dual-frequency bands and features high-performance forwarding capabilities to ensure an excellent experience with voice, Internet, and HD video services. These features make the EG8145V5 a perfect option for broadband access.
Features
- Huawei GPON ONT EG8145V5 Optical Network Terminal
- NNI: GPON
- UNI: 4*GE+1*POTS+1*USB, with 2.4G/5G WiFi
- ENG firmware, EU power
- 2.4GHZ: 11n 2x2 MIMO
- 5GHZ: 11ac 2x2 MIMO
- Antenna Gain: 5dBi
- Connector type: SC/UPC
- Can be configured by OLT or Web or NMS
- Routing function supported
Specification
| Model | EchoLife EG8145V5 |
| Type | Routing |
| Dimensions (H x W x D) | 173 mm x 120 mm x 30 mm (without antenna and pads) |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 5% RH to 95% RH (non-condensing) |
| Power Adapter Input | 100V to 240V AC, 50 Hz/60 Hz |
| System Power Supply | 11V to 14V DC, 2A |
| Network-side Ports | GPON |
| User-side Ports | 1 POTS + 4 GE + Wi-Fi + USB |
| Indicators | POWER, PON, LOS, LAN1, LAN2, LAN3, LAN4, TEL, USB, WLAN, and WPS |

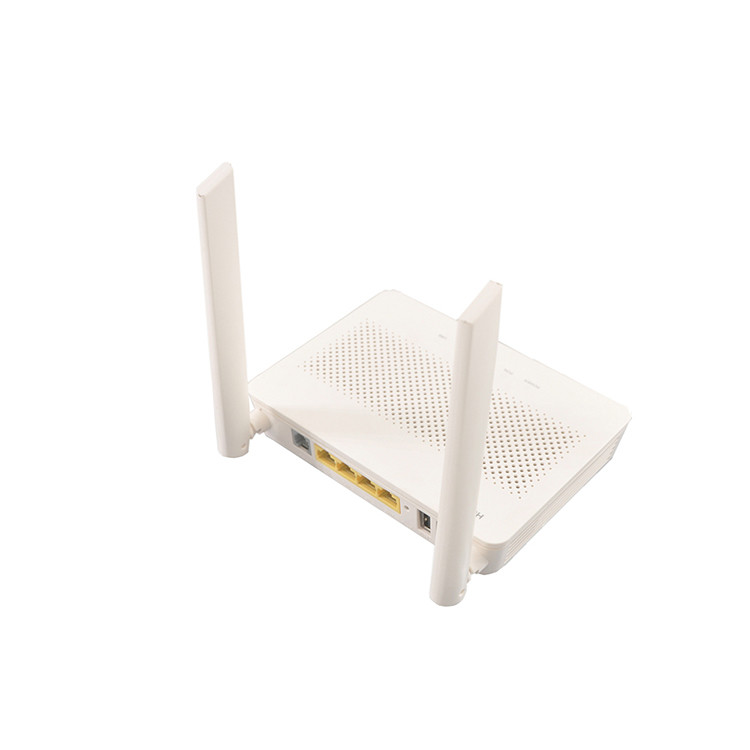

Detailed Images
FAQ
Q: How to change a digitmap mapping mode of Huawei EG8145V5?
A: Choose Voice > VoIP Basic Configuration from the main menu on the web page and configure Digitmap Match Mode.
Q: Which ONTs support dual-band Wi-Fi?
A: The ONTs with a name ended with "D" or "Q" support dual-band Wi-Fi, such as the HG8245D and HG8245Q.
XG-PON gateway type ONTs support dual-band Wi-Fi, such as the HN8055Q and HN8245Q.
Q: Can I use an iPad to log in to the Huawei EG8145V5 web page to upgrade the firmware version, or update and download the Huawei EG8145V5 configuration file?
A: An iPad cannot be used to perform a firmware upgrade, or update or download the Huawei EG8145V5 configuration file.
