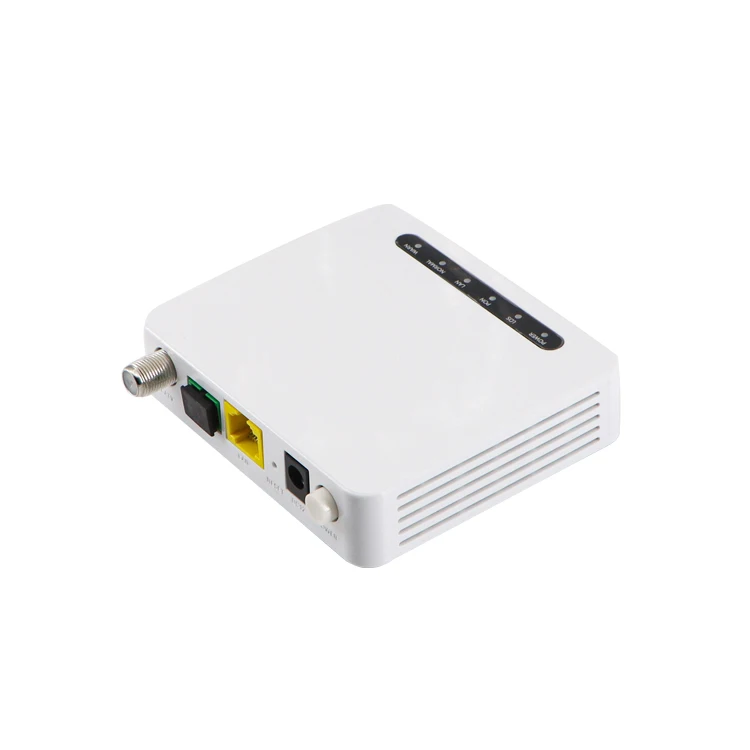

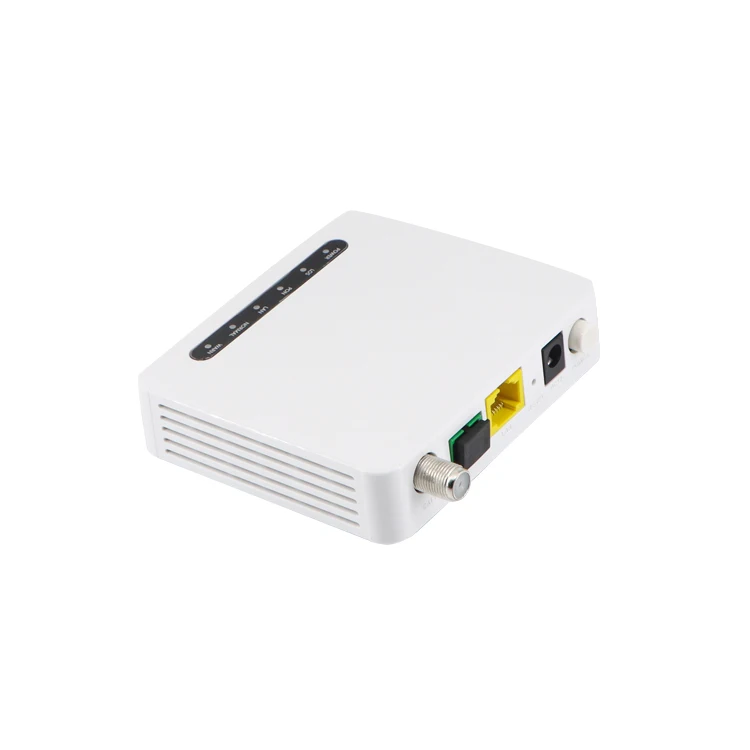

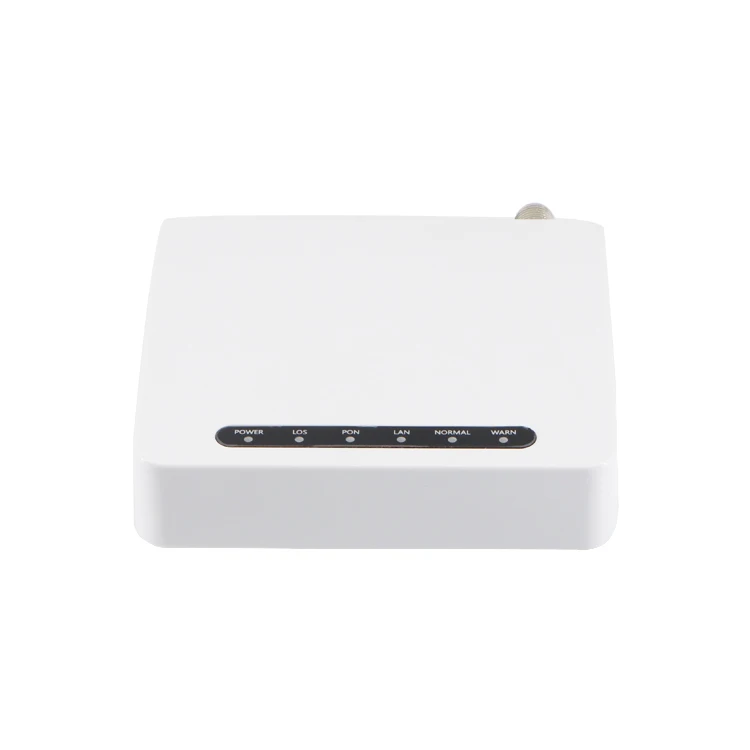

Modem De Fibra Optica FTTH XPON CATV ONU 1GE Port Ont Optical Network Terminal Onu Xpon Catv
XPON ONU(UT-XP6141) is designed and manufactured by Shenzhen UT-King Technology Co.,Ltd, a next-generation Gigabit Passive Optical Network terminal, ideal for Fiber to The Home solution. It’s an incredibly robust device allowing users to access high-speed internet connections via its XPON port and share it with a Gigabit Ethernet port. With the transmission rates of up to 2.488Gbps, one XPON port and one Gigabit Ethernet port, It provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.
UT-King 1ge CATV Xpon onuseries is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON when it access to the EPON OLT or GPON OLT
Features
- Color is optional
- Router mode supports PPPoE/DHCP/ static IP
- Support port-based rate limitation and bandwidth control;
- In compliant with IEEE802.3ah Standard
- Up to 20KM transmission Distance
- Support data encryption, group broadcasting, port Vlan separation, etc.
- Support Dynamic Bandwidth Allocation (DBA)
- Support ONU auto-discovery/Link detection/remote upgrade of software;
- Support VLAN division and user separation to avoid broadcast storm;
- Support power-off alarm function ,easy for link problem detection
- Support broadcasting storm resistance function
- Support ACL and SNMP to configure data packet filter flexibly
- Specialized design for system breakdown prevention to maintain stable system
- Support software online upgrading EMS network management based on SNMP ,convenient for maintenance
Specification:

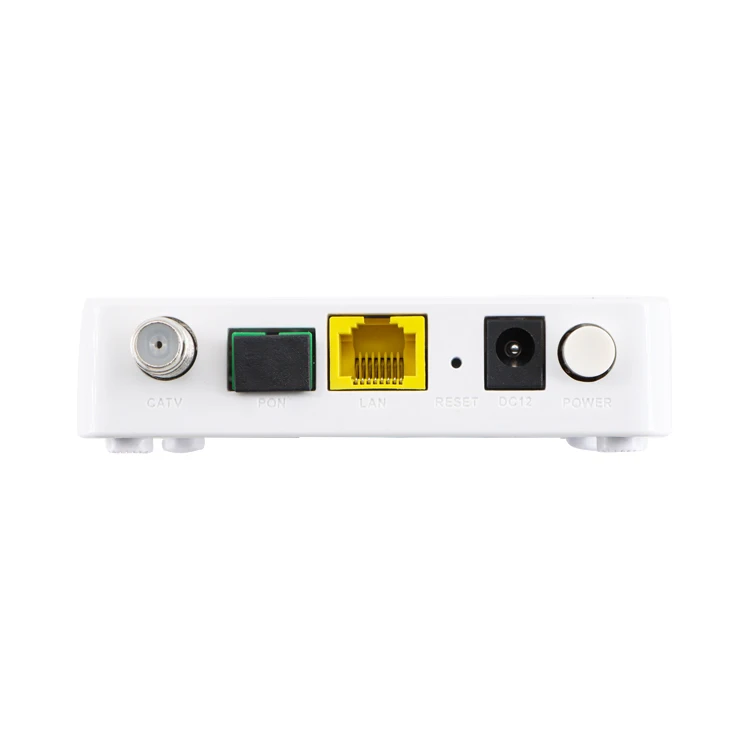

User
interface | 1 10/100/1000M RJ45 port |
| VLAN | Port-based VLAN
GVRP
IEEE 802.1Q VLAN |
Route | Support NAT
Support PPPOE
Support Server Client
Support Route |
| Environment | Operating temperature:0℃~60℃;
Operating humidity:10%~85% non-condensing
Storage temperature:-40℃~80℃;
Storage humidity:5%~95% non-condensing |
| Power supply | 110~240VAC 12V/0.5A DC
power interface size:2.1mm/5.5mm |
| PON |
Transmission speed :upstream/downstream 1.25Gbps
Network coverage radius: 20KM
Optical receive sensitivity:≥-28dBm
C ontinuous light power: 0.5 dBm~+5dBm
Security: ONU authentication mechanism |
About Us:
Shenzhen UT-King Technology Co., Ltd which was founded in the year 2010 is a professional Hi-tech company in fiber optic communication industry. We specialize in researching, developing, manufacturing and selling a wide range of highly competitive fiber optic products and accessories for telecommunication, broadcast, CATV and network worldwide.
Now, UT-King has more than 200 employees. Our main products are PLC splitters, Fast connectors, Patch cords, MPO/MTP products, adaptors, WDM system, Fiber cables, and Fiber managements. With the development of the business, UT-King has expanded its business to fiber active products in the year 2015. We have our own R&D team for EPON/GPON system. With their excellent technical strength, now we have full range of EPON/GPON/XPON OLT and ONU. What’s more, we also have big advantages on SFP modules, such as 10G SFP+, 40G QSFP28 and 100G CFP and 100G QSFP28.
All of our optical products are RoHS compliant and we also obtained ISO9001, ISO14001 certification. Rich experiences in massive Cproduction of fiber optical products ensure the reliable stabilities of its high quality and excellent performances of its goods. It obtains the good reputations all these years Cfrom customers around the earth for its excellent quality, fast delivery, and timely after-services. We wish to create better future of optical communication industry jointly with both new and existing customers.
