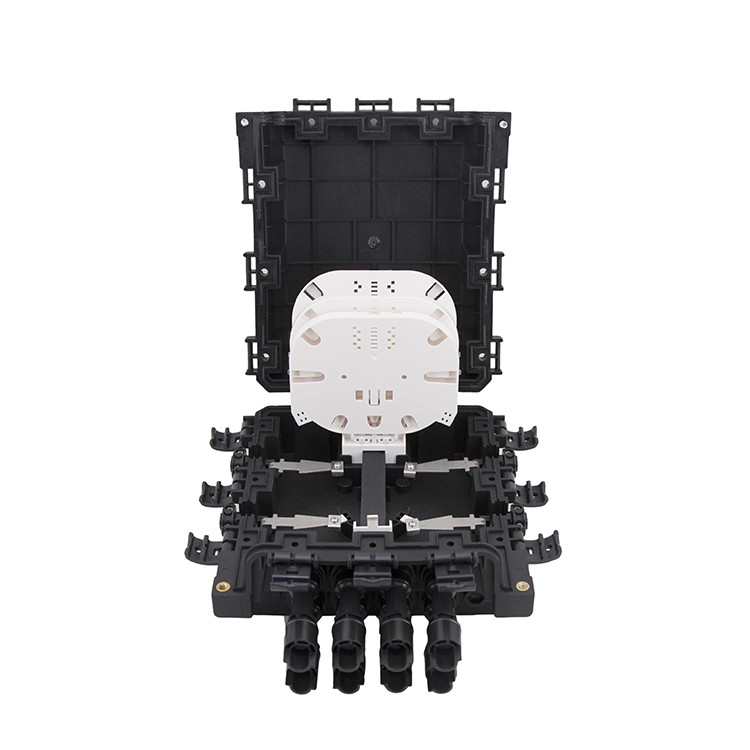

IP68 FTTH Mini Fiber Optical Splice Closure Horizontal Type Joint Box Cajas Nap De Distribucion Fibra Optica
Description
UT-King’s fiber optic splice closures are specially designed to protect joints of optic cable. Excessivefibers can be stored in storage baskets behind the splice trays. The optical fibers are fusion on sides of the tray. Onetray can splice 24 fibers; Available for 3 trays to splice total 72 fibers. Adopt modified PP material, with anti-UV,anti-aging and corrosion resistance material. Good quality and long service life. It is reusable.
Whether your fiber-to-the-home (FTTH) network design has closures in a buried or aerial environment, one thing remains the same: you need assured environmental protection and quick, incremental subscriber drops. From our experience in the field, we know that not all closures are the same. UT-King's closures are designed with your needs in mind.
Application
- Dis-mountable adaptor panel
- Support mid span termination
- Rotatable and dis-mountable splice tray for easy splicing
- Wall mounting & pole mounting installation
- Suitable for 2*3mm Indoor FTTH Drop cable and outdoor figure 8 cable
Features
- Excessive fibers can be stored in storage baskets. Easy in fiber management.
- Fully mechanical sealing. Easy installation and reentry. No other sealing adhesive tape is needed.
- Base and dome sealed with clamp and O-ring system. Cable entry ports sealed with rubber.
- The splice trays are hinged for access to any splice tray, without disturbing other trays.
- The inner parts and fixing parts are made of stainless steel
- With a earthing device protect it from damage by lightning
- Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slottedcore, modular).
- And the product can be used in any environment (aerial, buried, handhole, manhole)and in many
- applications(tap-off, expressed, branch, and repair)
Specification
| Model | UT-GJS-HC05 |
| Dimension | 248x276x124.5mm |
| Material | Dome & base :Modified P.P+GF
Tray: ABS |
| Capacity of FOSC | 3x24 fibers |
| Max ratio | 1x8 1pcs plc spltiter |
| Diameter of Cable | 2 inlets and 2 outlets < 11mm |
| Outlet of Cable | 8 round ports for drop cable |
| Net Weight | 2.5 kg |
| Outter carton size | 630*410*375mm |
| number of Packing | 8 pcs/ctn |
| weight | 20kg /ctn |
Detail Images
FAQ
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.
Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
